Name: Wooden Block Backboard - Full, Half, & Quarter Sizes - Available in 7 Colors
SKU: 218698

Product Details ＋

Note: Images are for size reference only. Color of the board will be the color you choose.

Description

66 Block Wood Backboard

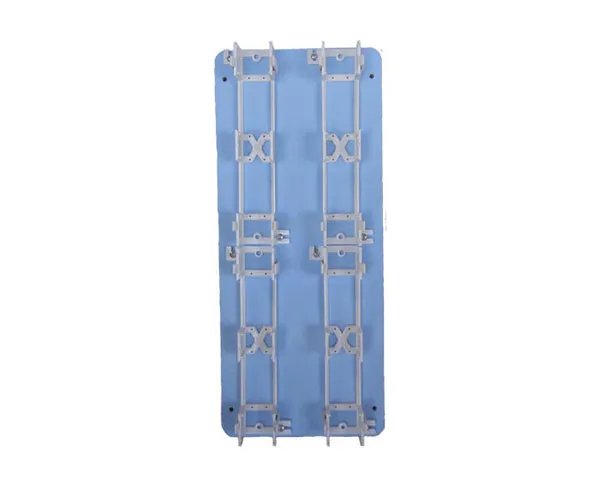

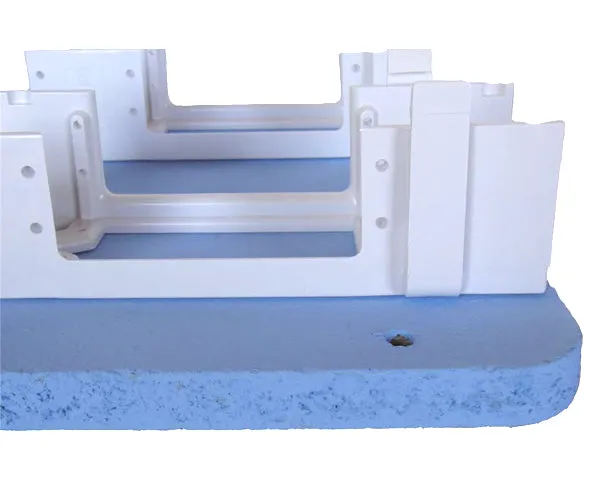

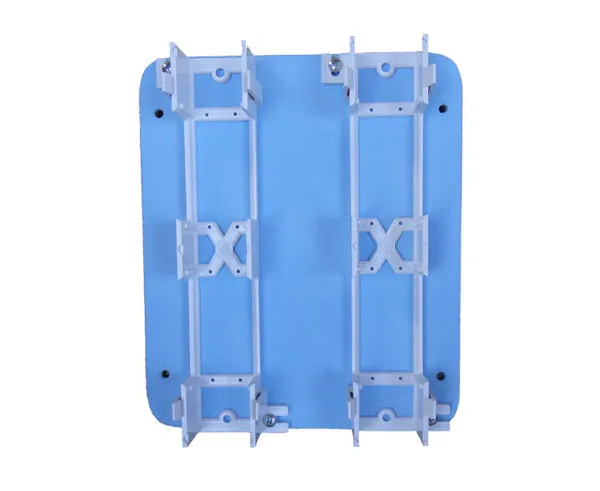

These wooden backboards from Dynacom support two, four or eight 66 Wiring Blocks. Some punch-down wiring blocks do not contain legs (also called feet), which prevents them from being wall-mounted. With a backboard and an 89B bracket, any 66 punch down block can be mounted to the wall.

Additional Related Items

To complete your network, we have all the products you need, with full end to end solutions for Telco voice systems. We carry a wide array of , , and.

If you are looking to quickly and easily install your CAT3 network or voice system, we have , , and.

We also carry Telco tools and equipment for testing the integrity of a CAT3 network such as , and .

We also carry a large assortment of items that work with Telco voice systems such as: , , , , and other accessories that will help make your installation fast, smooth and organized.

Features

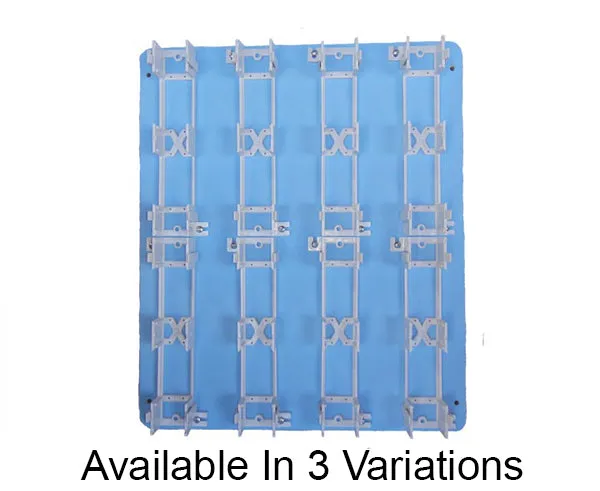

Accepts Two, Four or Eight 66 Blocks (1x2, 2x2 and 4x2 configurations)
1/2" Thick Wood
NOT Fire-Retardant Materials

Specifications

Part Number	PP7-5762-QW-XX	PP7-5761-HW-XX	PP7-5760-FW-XX
Configuration	Quarter Size	Half Size	Full Size
Capacity	2 Wiring Blocks	4 Wiring Blocks	8 Wiring Blocks
Height	8.5 inches	8.5 inches	17 inches
Width	10 inches	20 inches	20 inches
Depth	0.5 inch Backboard, w/ 2 inch Block attachment	0.5 inch Backboard, w/ 2 inch Block attachment	0.5 inch Backboard, w/ 2 inch Block attachment
Package Quantities	Sold in boxes of 16 (Minimum Quantity Order is 3)	Sold in boxes of 8 (Minimum Quantity Order is 4)	Sold in boxes of 4 (Minimum Quantity Order is 3)

*No Spec Sheet for Quarter Size Backboard.

Additional Information

Telco Block Accessories

Telco blocks are utilized to connect phone systems to data networks. There are two popular forms of telco blocks: the 66 block and the 110 block. The 66 block is quite common in modern phone systems, as they simplify connecting multiple phone lines. The 66 block is also referred to as B-blocks, M-blocks, and as split-50 blocks. We also have Cable Distribution Spools, or mushroom posts for managing your cross connect wire. It is designed for mounting onto walls or other surfaces to help support and guide your cross connect wire. Our cable distribution spools are also ideal for Cat3 cable for telephone applications.

To learn more about our please visit our overview page. Our 66 Block Metal Backboards can be combined with a wide array of products such as:
