Product Details
＋

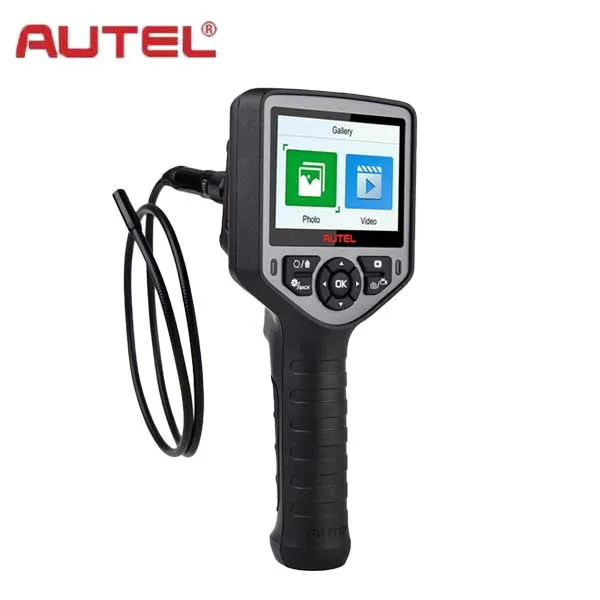

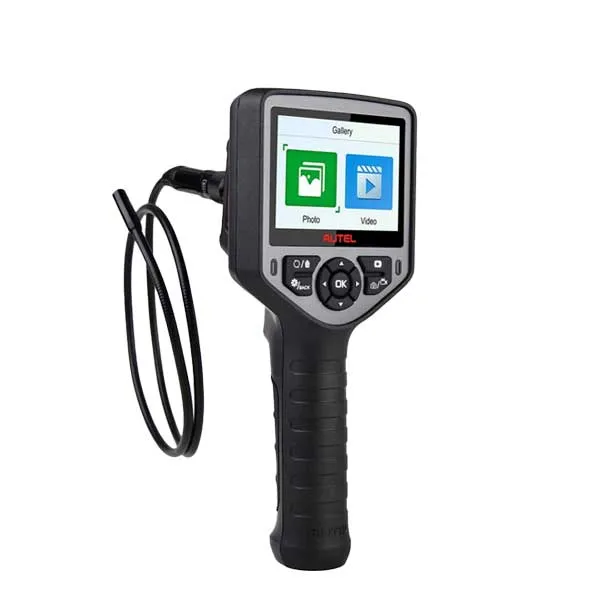

The MaxiVideo MV460, the next generation of digital videoscope, is ideal for inspecting difficult-to-reach areas with its semi-rigid flexible cable and 10-level adjustable LED light. It features a 1920 x 1080 high resolution camera, a 3.5-inch 640 x 480 full color LCD display, an 8.5mm camera probe, and a built-in 2600mAh battery with up to 4 hours of continuous use. This multipurpose videoscope is an economical solution to inspect machinery, facilities, and infrastructure in the safest, quickest and most cost-effective manner possible.
Features:
- High resolution images and videos (1920 x 1080)
- 3.5-inch full color LCD display (640 x 480)
- 1-button quick image capture and video recording
- 70-degree field of view for expanded viewing angle
- Micro HDMI-output enables streaming to larger monitors
- Freeze-frame camera stills or video recording
- On-screen horizontal/vertical reverse
- Records and plays back images and video clips
- 7X digital zoom for increased viewing
- 8GB Micro SD card (included), supports up to 128GB
- Mini-USB cable (included) for uploading images and videos
- More than 10,000 lux, adjustable 10-level LED illumination
- Built-in, rechargeable 2,600 mAh battery for 4 hours of continuous use
- 1m (39.4") semi-rigid, flexible watertight cable
- Includes magnet, hook, and mirror cable accessories
- 8.5mm (0.33’’) probe fits most spark plug holes
- Compatible with 5.5mm (0.22’’) camera head (not included)
- One-year limited warranty
Specifications
| Optimal Viewing Distance | 0.79" to 2" (2 cm to 5 cm) |
| Image Capture | JPG images (1920 x 1080 pixels) MP4 videos (1920 x 1080 pixels) |
| Screen type display | 3.5" TFT LCD |
| Display resolution | 640 x 480 pixels |
| Power supply | Built-in rechargeable lithium-ion battery pack (3.7V/2600 mAh) |
| Tested battery life | Approximately 4 hours of continuous use |
| Dimensions | 235 x 97 x 125mm (9.3" x 3.8" x 4.9") |
| Recording medium | Micro SD card (8GB Standard/128GB Max) |
| Image Controls | Zoom, low light vision |
| Lighting | Fully adjustable LED |
| Cable Reach | 1m (39.4") |
| Imager head | 8.5mm (0.33"), 2 megapixel (1920 x 1080 pixels) |
| Waterproof | To a depth of 1m (39.4") (Imager heads and cable only) |
| Additional ports |
TF Mini USB Micro HDMI |
| Operating Temperature | Main unit: 14°F to 122°F (-10°C to 50°C) Cable: 14°F to 140°F (-10°C to 60°C) |
| Storage Temperature | -4°F to 158°F (-20°C to 70°C) |
| Operating Humidity | 5% - 95% non-condensing |

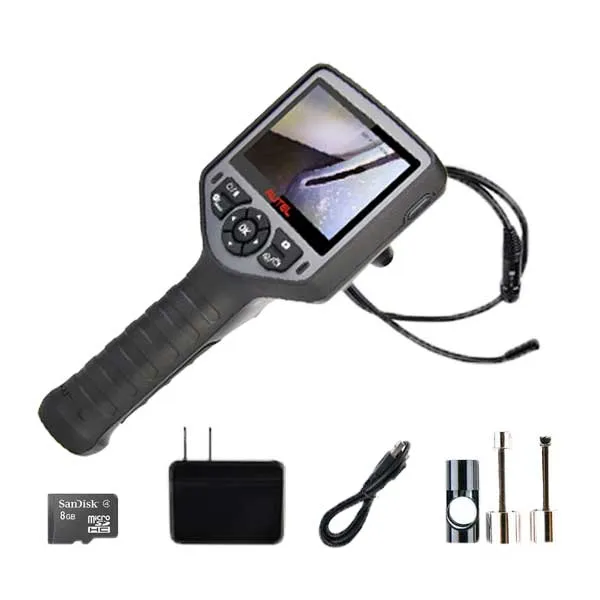

Includes
- 1x Maxivideo MV460 main unit
- 1x User Manual
- 1x Imager head and cable (8.5mm)

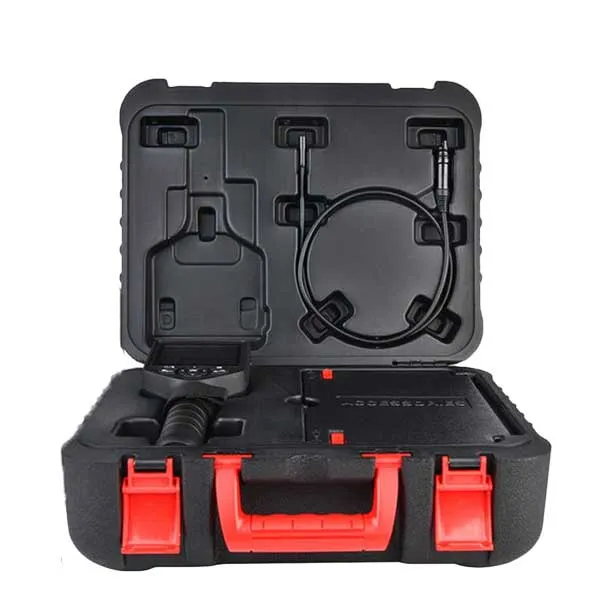

- 1x Protective carrying case
- 1x Micro SD card
- 1x Mini USB Cable
- 1x Charger
- 1x Magnet
- 1x Hook
- 1x Mirror
