Product Details
＋

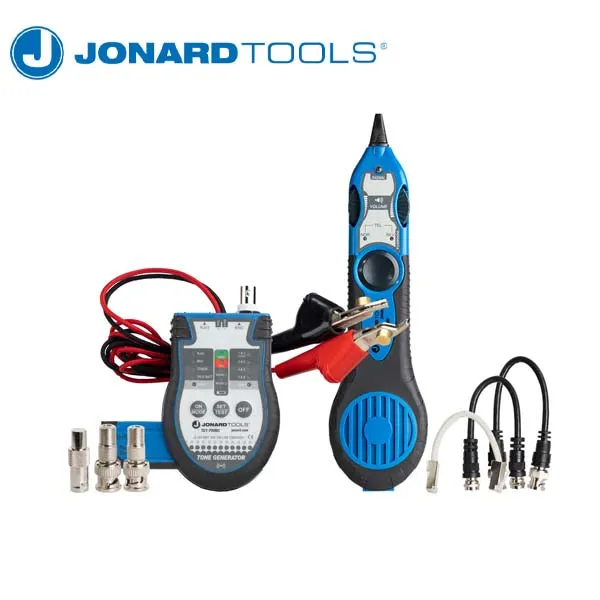

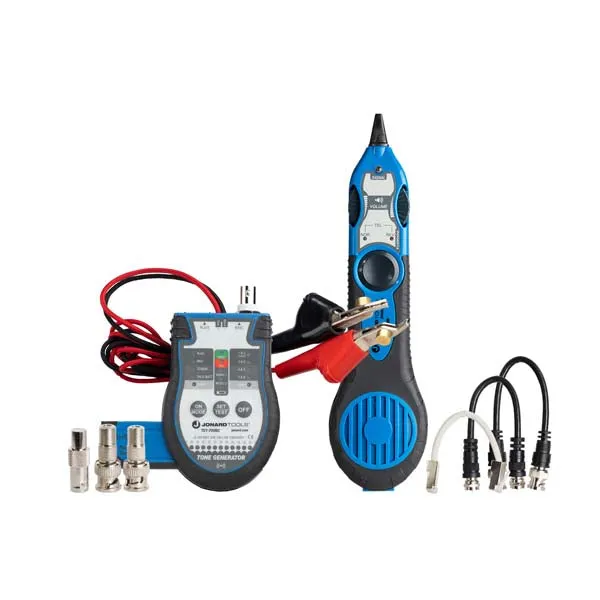

Designed to identify, trace, and test the continuity of BNC & F connectorized COAX cables, network cables using RJ45 connectors, and telephone lines using 6P2C/4P2C plugs. This multi-function cable tester tone and probe kit is the perfect kit for any Voice Data Video (VDV) professional. This kit features the following:
TET-200 - Tone Tracing Probe :
- Plastic probe tip prevents accidental shorts
- LED light provides a visual indication of signal strength
- Able to check the polarity of many 6P2C/4P2C telephone jacks
- Adjustable volume knob and headphone jack assist in tracing wires
- Works with many other manufacturers’ analog tone generators
- Includes (1) 9V battery required for operation
TET-700BC - Cable Tester & Toner w/ ABN:
- Remote terminator can be used to test network cables with ease
- Provides tone via RJ45 and BNC connectors or test clips
- Provides talk power to a telephone for testing
- Two different musical tones to choose from
- Works with our TEP-200 Tone Tracing Probe or others to identify cables
- Includes TET-6 Accessory Kit and (1) 9V battery required for operation
Specifications
| Application |
Wire Toning & Tracing |
|---|---|
| Connectors |
(2) ABN (Angled Bed of Nails) clips, (1) RJ45, (1) BNC, (1) F Connector |
| Max Distance |
0.62 mi (1000 m) |
| Standards |
CE Standards |
| Battery Type |
(2) 9V included |
| UPC # | 810053350065 |
