Description

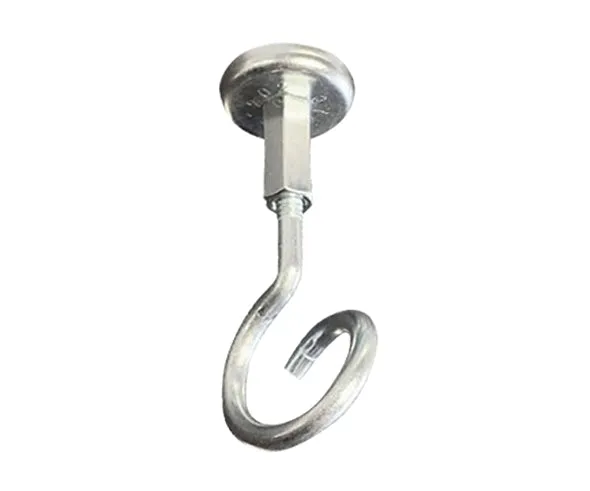

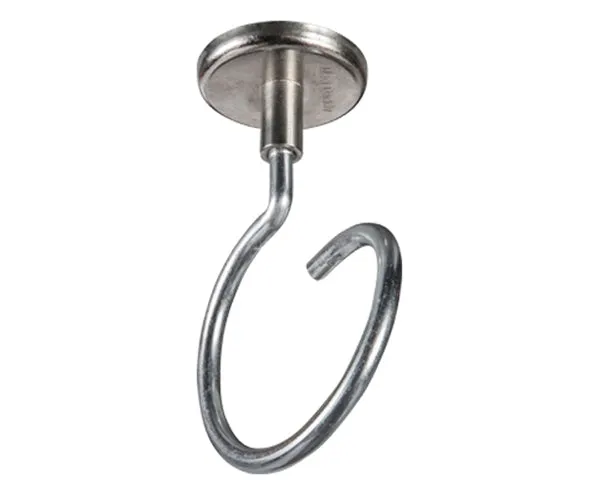

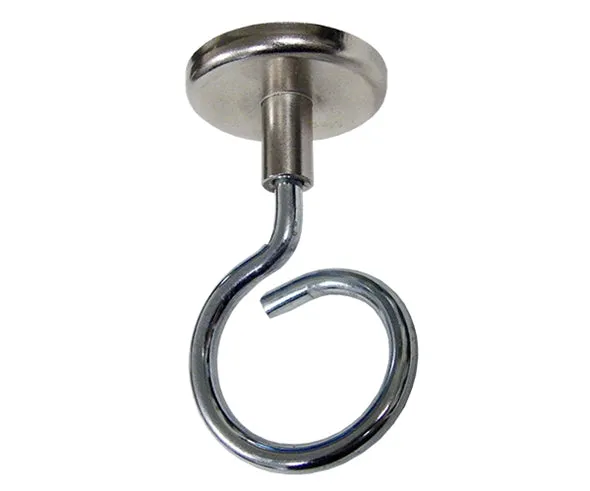

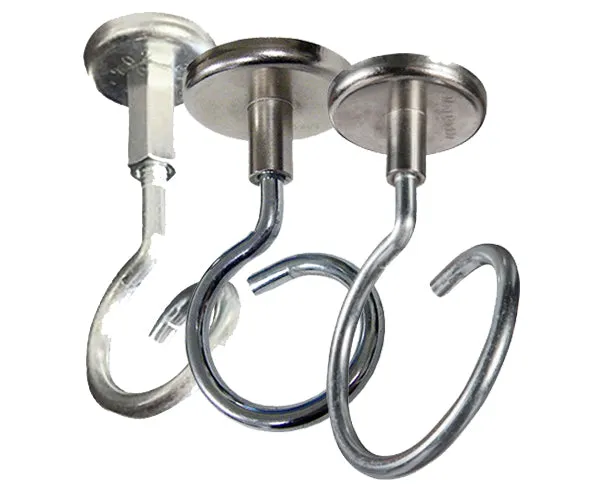

Magnetic Bridle Rings
The Magnetic Bridle Ring is the ideal cable management solution for low voltage wire and cable. Clean, safe, and efficient, the magnetic bridle ring installs from the safety of the ground utilizing an Xtender Pole. No drilling is required for installation. The 3/4" size magnetic bridle rings have a 10-24 machine thread. The 1 1/4" and 2" diameter loop sizes have a 1/4-20 machine thread; pull strengths vary from 26lbs, 40lbs, and 90lbs.
Suspend from:
- Steel
- Beams
- Purlins
- Ceiling Decks
- Drop Ceiling
- Channels
- Metal Joists
- Frame Rail
- Screw Heads
- Metal Washers
Features
Features
- Easy installation
- Permanent or temporary installations
- Re-usable
- Time saving
- Safer working conditions
- 3/4" sizes are 10-24 thread type
- 1 1/4" and 2" sizes are 1/4-20 thread type
- Up to 26lbs, 40lbs, or 90lbs pull strength
Specifications
Specifications
JH-1814-BRM - 3/4", 10-24 Thread - 26 lbs Pull Strength:
JH-7202-BRM - 3/4", 10-24 Thread - 65 lbs Pull Strength:
JH-1812-BRM - 1 1/4", 1/4-20 Thread - 90 lbs Pull Strength:
JH-1813-BRM - 2", 1/4-20 Thread - 90 lbs Pull Strength:
Additional Information
Hanging Hardware Solutions
Overhead cable management is another means of keeping networking cables organized and out of the way. Having a cable hanging system established helps maintain a clean and safe workspace. We offer a wide assortment of hanging hardware for your cable management system including angle clips, beam clamps, drive rings, threaded rod couplers, and more.
We offer tools like the to facilitate the process of installing cable hanging hardware. Professional contractors and installers can reach dangerous, hard to reach areas safely and efficiently with this tool. The Xtender pole installs hanging hardware like J-hooks, eye lag screws, ceiling wire, and threaded rods with ease, and all from the work floor. It has interchangeable heads for installing the hanging hardware of your cable management system.
